Simple GW Demo Unit
Circuit # 930

( 5-4-1990 )

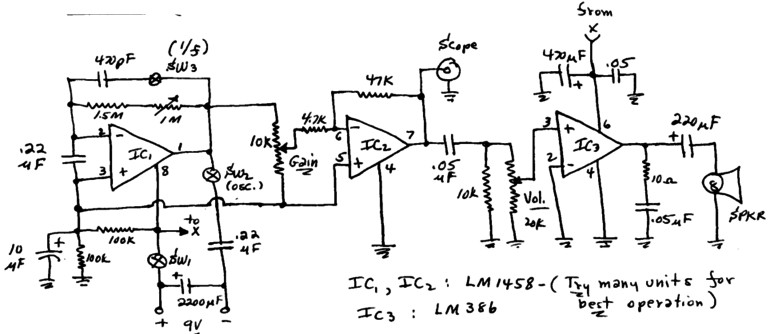

I. Circuit (Made in 2.5 x 1.5 x 5 inch box) --

Simple GW Demo Unit

II. Remarks

Unit will demonstrate:

1. QND mode (Nova ‘bursts’ at different frequencies)

2. l/f noise (broadband ‘cosmic’ noise)

3. Oscillator mode (variable frequency)

4. Radar ‘pulse’ detection

5. Scope display of QND, l/f. and oscillator modes.

6. Single internal battery supply used.
